Single spans to 30 feet from one sleek headbox. Zipper-tracked, motorized, and built entirely in-house — no outsourced components, no supply chain surprises.
Most motorized screen systems on the market are assembled from third-party components — motors, tracks, and headboxes sourced from whoever had them in stock that quarter. If something goes wrong, you're making calls to three different vendors.
The PowerScreen is built differently. Every component — the headbox, the zipper retention system, the ball-bearing idlers, the powder coat finish — is proprietary to La Costa. We control the supply chain, which means we control the lead time, the quality, and the warranty.
When something goes wrong on a job, you call one number. A person answers.
"When the screen disappears into the wall, clients don't just see a product — they see what their backyard was always meant to be."
Watch the full PowerScreen deployment, headbox installation, and Maverick motor pairing from our manufacturing facility in Escondido, CA.
All specs are for trade reference. Contact your dealer rep for project-specific engineering requirements, wind load certifications, or permit-ready documentation.
| Specification | Standard | Notes |
|---|---|---|
| Max Width (Single Span) | 30 ft (360") | No center post required |
| Min Width | 24" | — |
| Max Drop Height | 20 ft | Contact rep for taller applications |
| Headbox Profile | 4.5" × 4.5" | Surface or recessed mount |
| Side Channel | Proprietary zipper track | Extruded aluminum, powder-coated to match |
| Bottom Bar | Extruded aluminum, weighted | Drainage slots standard |
| Standard Colors | 13 architectural powder-coat | Custom RAL available — add 6–8 wks lead |
| Motor Options | Maverick (standard) · Somfy RTS/io (available) | Maverick = La Costa proprietary, 20-yr warranty |
| Motor Torque | 10 Nm – 40 Nm | Spec by width × fabric weight |
| Power Requirements | 120V AC, dedicated 15A circuit | One circuit per motor; conduit run in headbox |
| Smart Home Integration | Somfy io, RTS via TaHoma | Control4, Crestron, Alexa, Google Home |
| Remote | Maverick (La Costa proprietary) | Multi-channel, field-programmable limits |
| Fabric Options | Maverick — 75 · 90 · 95 · 97 · PRIVACY | See fabric section below |
| Warranty — Maverick Fabric | 20 years, limited | Original purchaser only, non-transferable |
| Warranty — Maverick Motor | 20 years, limited | Original purchaser only, non-transferable |
| Warranty — Somfy Motor | Per Somfy manufacturer terms | Confirm current term with rep — not covered by La Costa's 20-yr |
| Warranty — Parts | 10 years | Structural, housing, tracks |
| Lead Time (standard) | [CONFIRM WITH SAM] | Stock materials ship faster — call rep |
| Minimum Order | [CONFIRM WITH SAM] | — |
La Costa doesn't resell third-party fabric on the PowerScreen — Maverick is our own line, engineered to spec alongside the headbox and zipper system. It's the only fabric on this system, and it's what makes the 20-year warranty possible: we control the material, so we can stand behind it.
Five grades cover the full range from open-weave visibility to full blackout privacy, each available across a curated color line.
Entry grades in the line — solid everyday performance where maximum see-through matters most.
The volume grades — this is what most PowerScreen jobs ship with. Widest color range in the line.
Full Fabric Spec SheetThe tightest weave in the line — for clients who want zero visibility through the screen when closed.
Maverick is La Costa's proprietary motor and remote system, built and supported in-house. It's the standard motor on every PowerScreen, and the only one covered by our 20-year warranty.
For projects already built around a Somfy ecosystem — TaHoma, Control4, Crestron — the PowerScreen also supports Somfy RTS/io motors. Somfy hardware carries Somfy's own manufacturer warranty, not La Costa's 20-year Maverick warranty — confirm the current term with your rep before quoting.
Four application types. One platform. The PowerScreen spans 24" to 30' — narrow window retrofit to full patio enclosure.
Full multi-drop enclosure systems, motorized in sequence

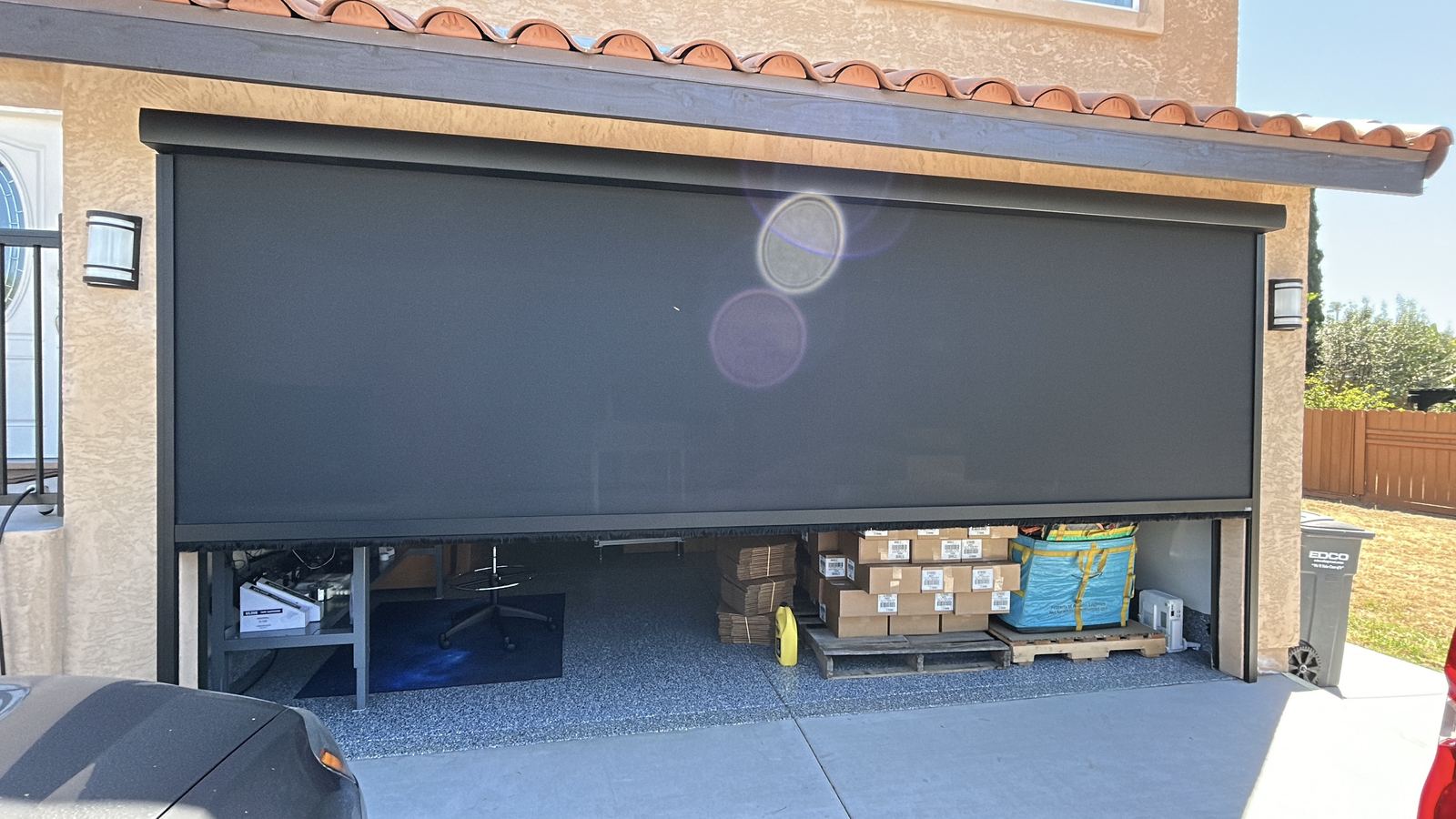

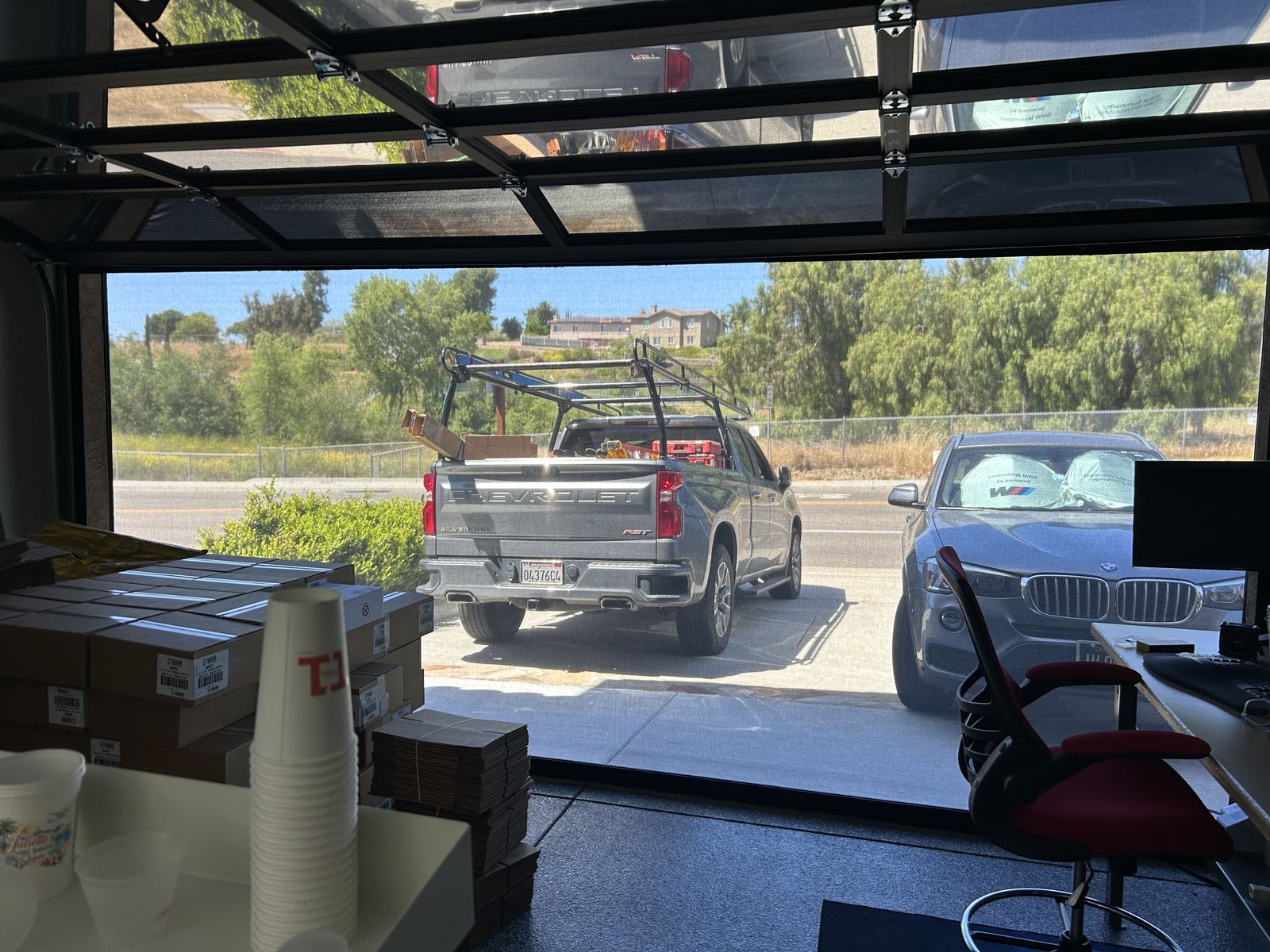

Full-span over standard and custom garage openings

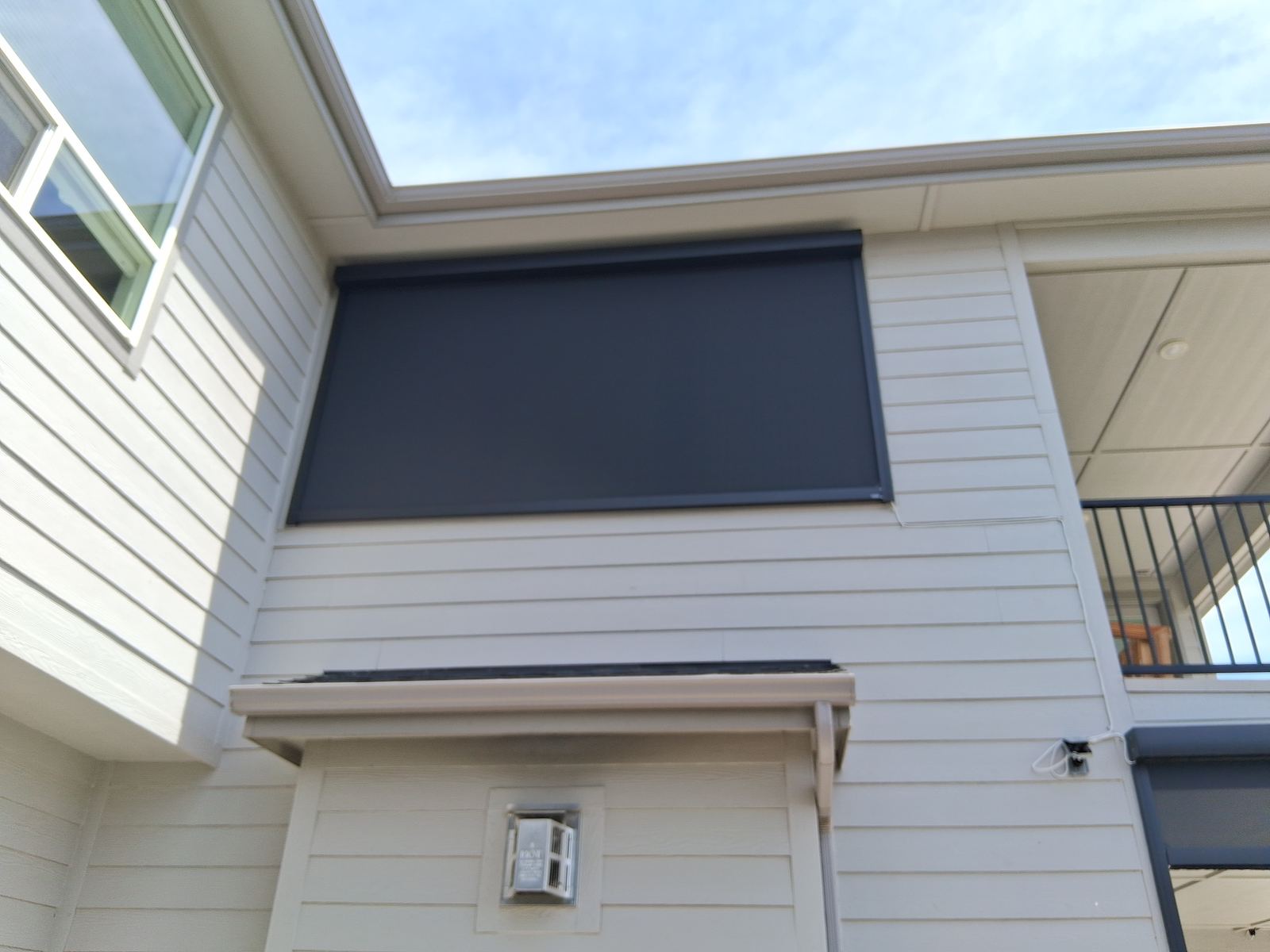

Exterior motorized solar screens — heat rejection without blocking light

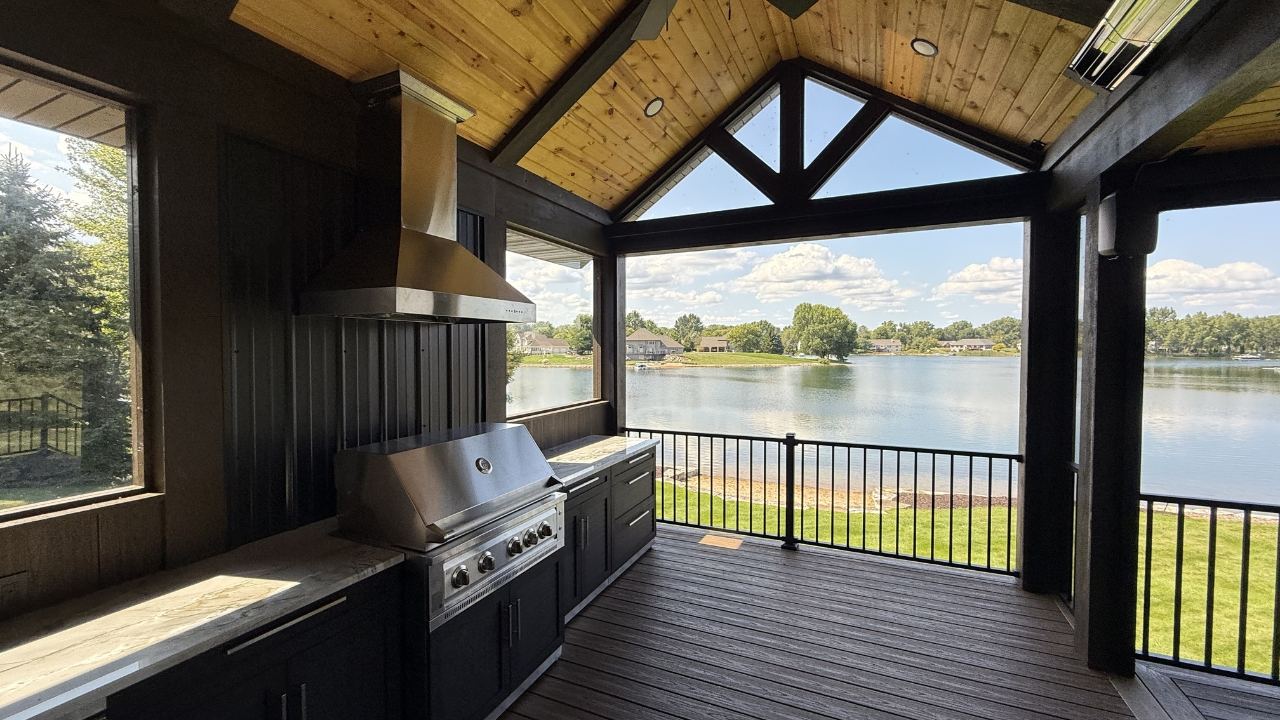

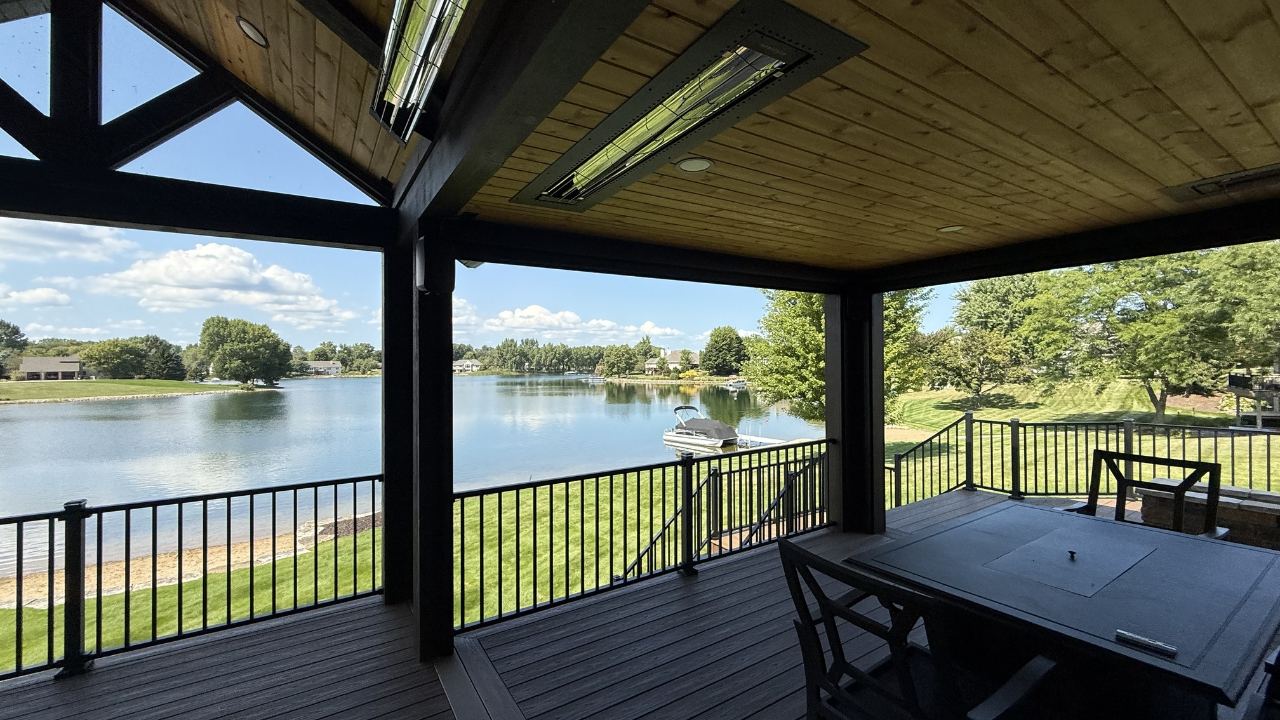

Retractable screen porch enclosures — seasonal or permanent

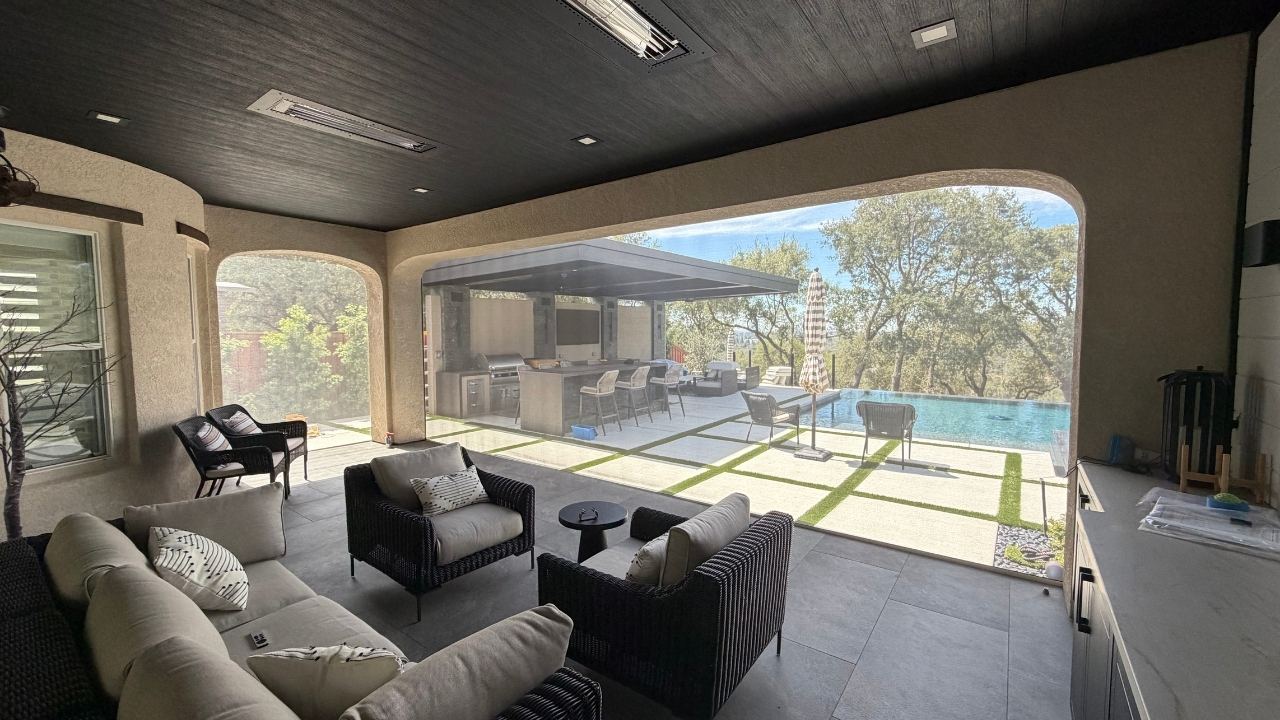

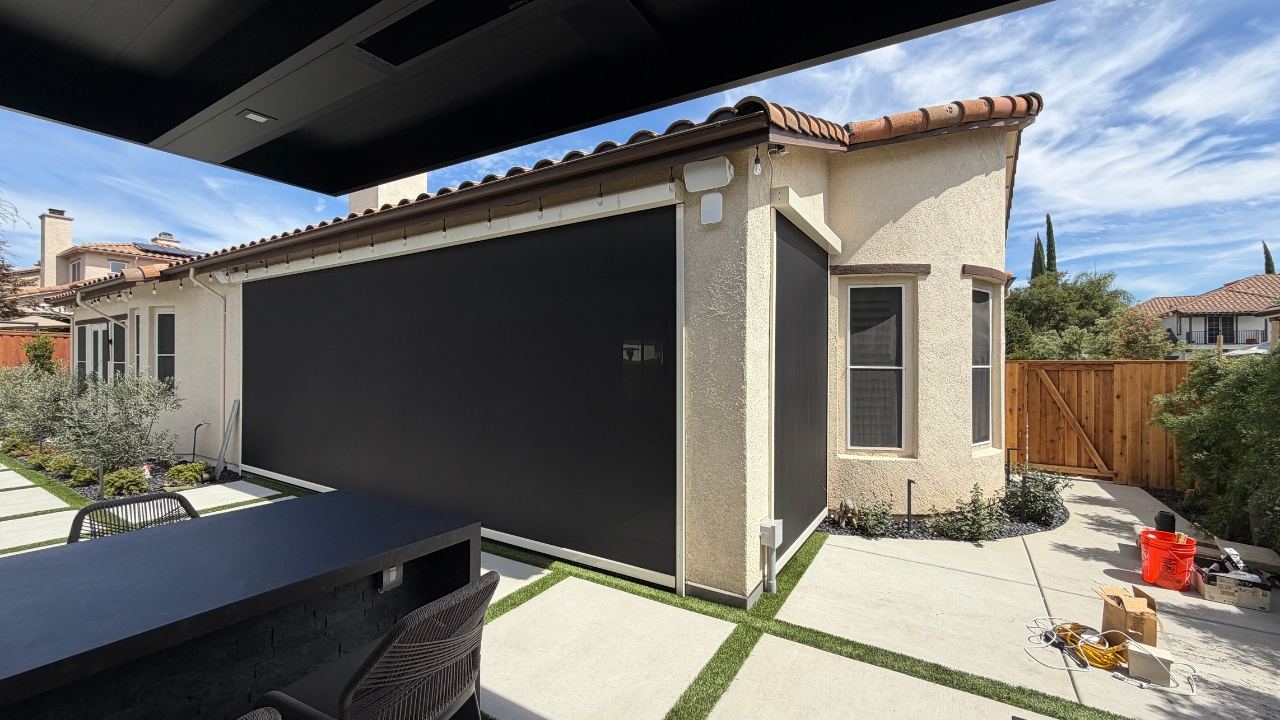

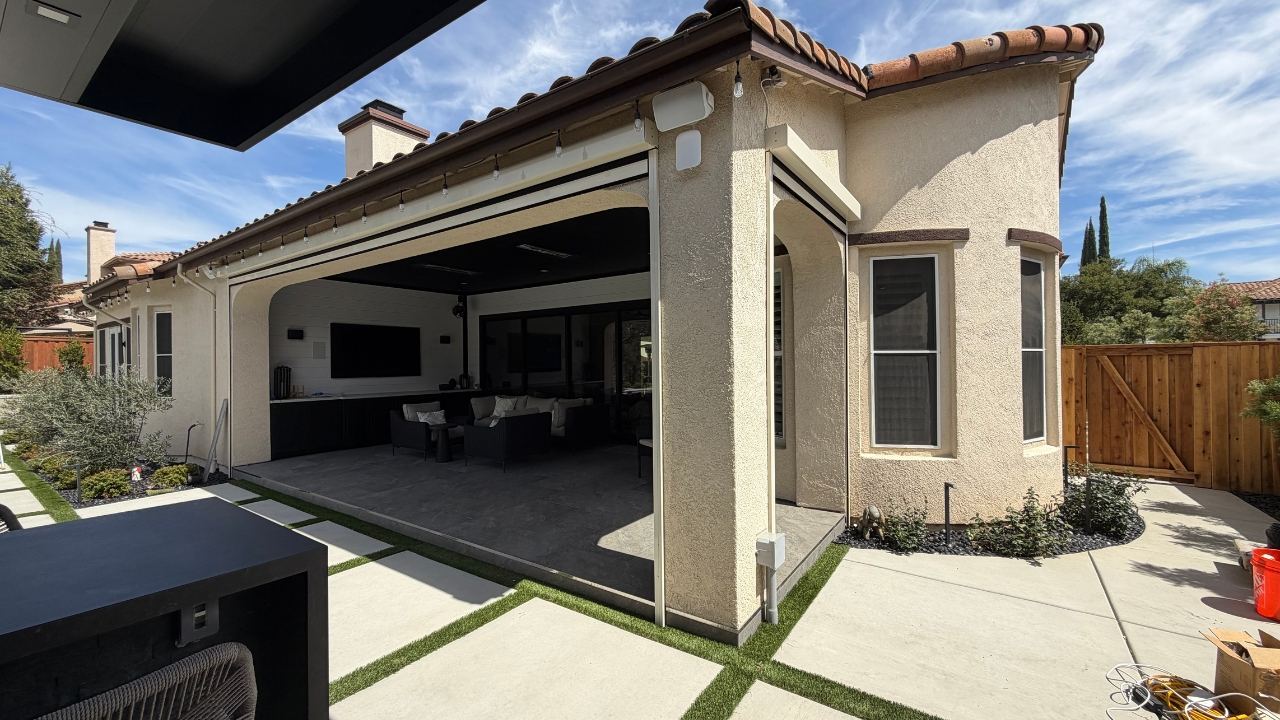

Real install footage — outdoor kitchen patio enclosure, Rocklin, CA
This is the field reference. Rough opening requirements vary by headbox mounting method (surface vs. recessed) and whether side channels go into masonry, wood, or aluminum framing.
The spec sheet in the dealer portal has the full tolerance table and header load calculations. What follows is the quick-ref for estimating.

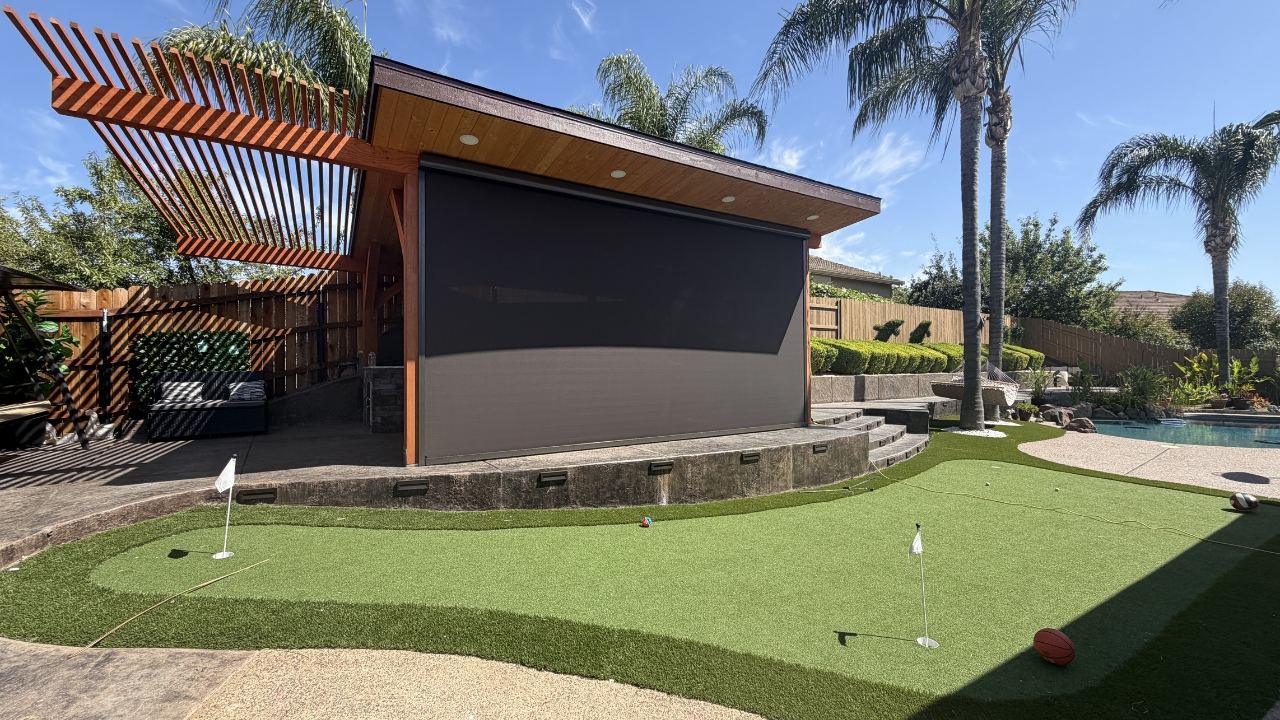

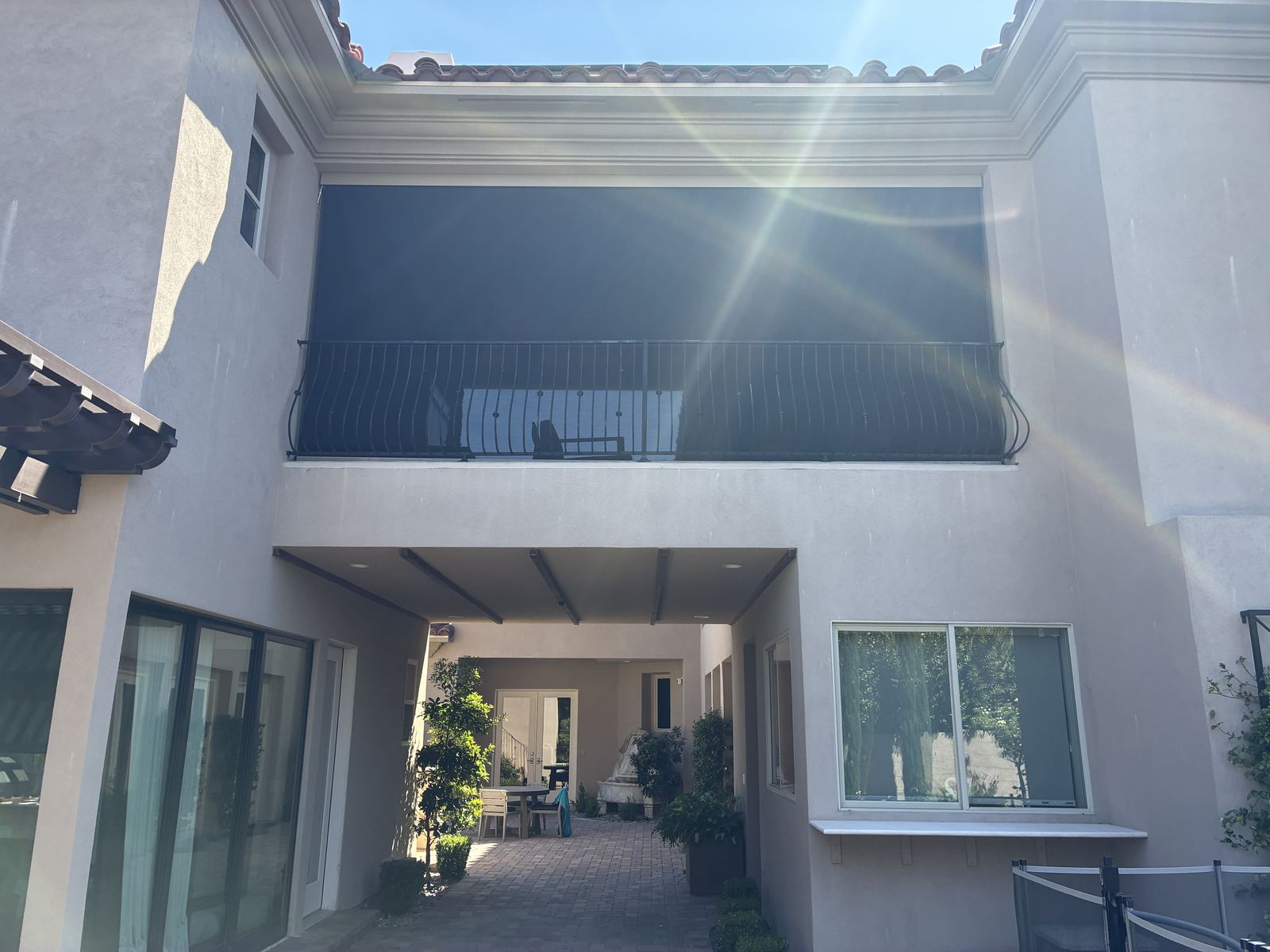

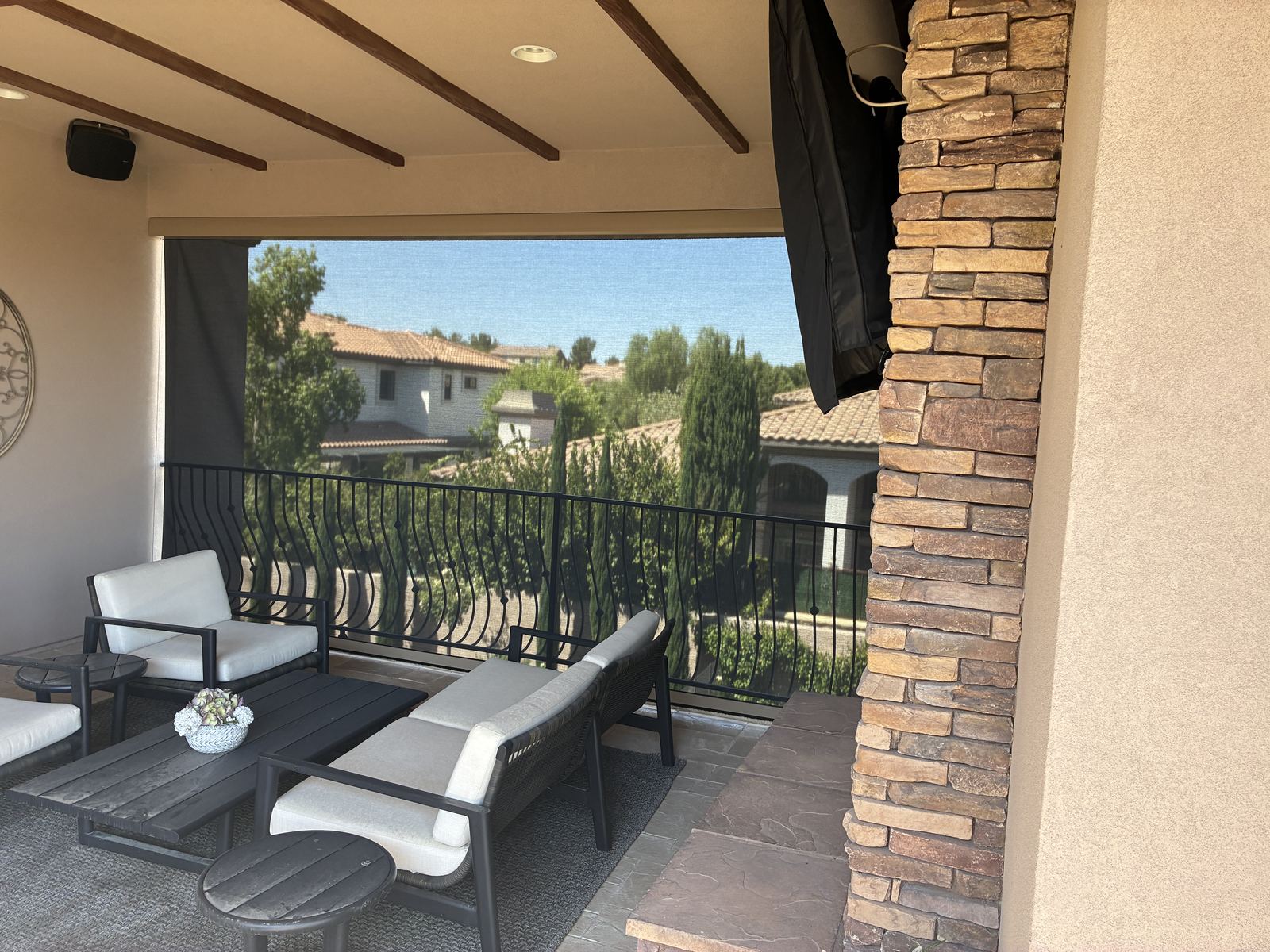

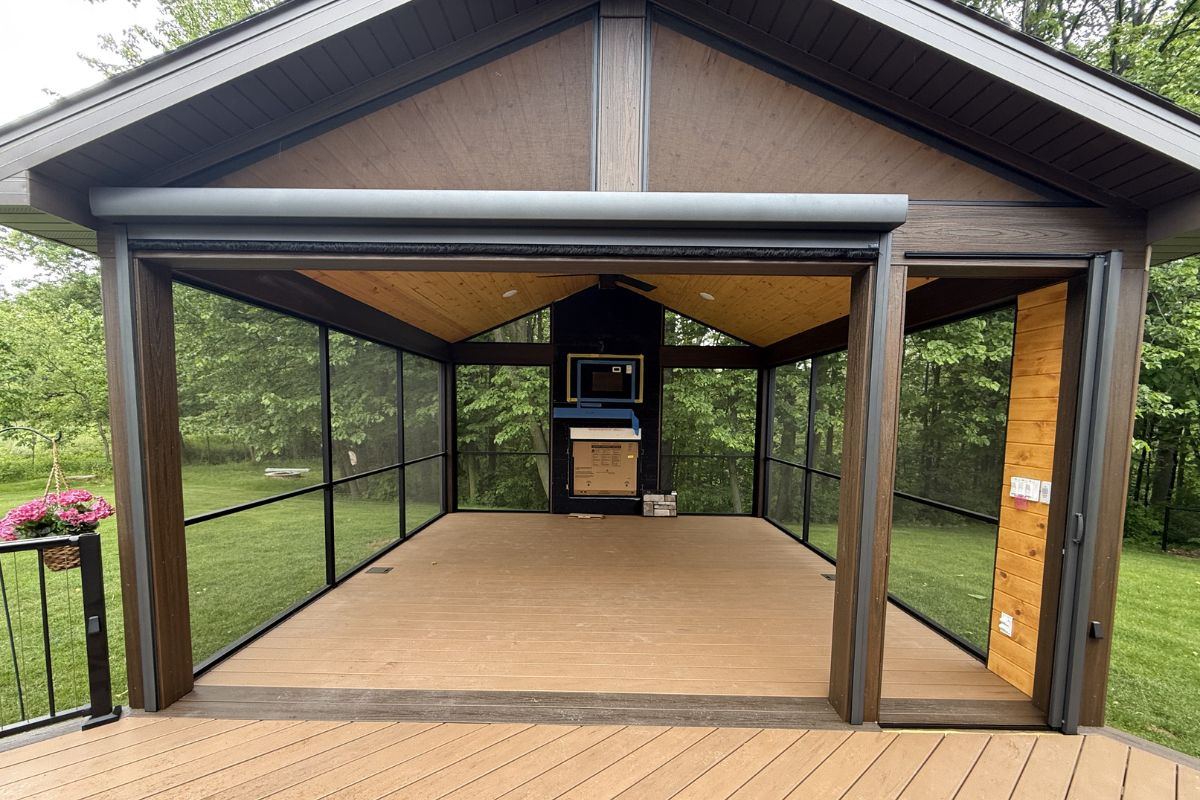

No renders. These are photographs from actual dealer installations — California, Nevada, Idaho, and Wisconsin.
These are real questions from the field, not a marketing FAQ. If your question isn't here, call the rep line — someone picks up.
Dealer applications take 5 minutes. If you're an installer who's been looking for a screen system you can actually stand behind, this is the conversation.
